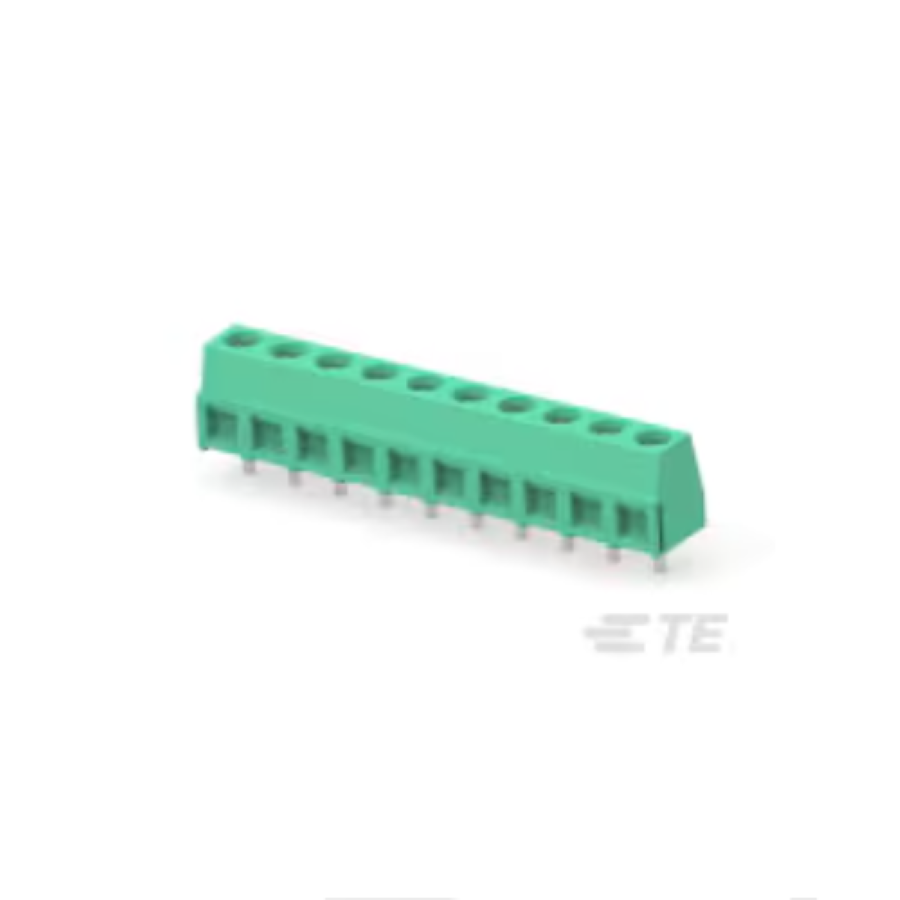

1-282836-2
Manufacturer:
TE Connectivity
Mfr.Part #:
1-282836-2
Datasheet:
Description:
Terminal Blocks Through Hole 12 5 mm 13.5 A 300 V 30 AWG to 16 AWG
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 250 V |
| Length | 60 mm |
| Width | 10 mm |
| Termination | Screw |
| Max Operating Temperature | 110 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 250 V |
| Packaging | Bulk |
| Voltage Rating | 300 V |
| Depth | 8.2 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 5 mm |
| Voltage | 300 V |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 5 mm |
| Current | 13.5 A |
| Current Rating | 13.5 A |
| Max Current Rating | 13.5 A |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 12 |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Color | Green |
| Number of Contacts | 12 |
| ELV | Compliant |
| Number of Poles | 12 |
| Connector Type | Receptacle |
| Wire/Cable Gauge | 30 AWG |
| Thread Size | M3 |
| Number of Positions | 12 |
| Number of Rows | 1 |
| Insulation Material | Nylon |
| Housing Material | Polyamide |
| Number of Positions Per Level | 12 |
| Number of Levels | 1 |
| Connector System | Wire-to-Board |
| Max Voltage Rating (AC) | 300 V |
| Max Supply Voltage (AC) | 300 V |
| Wire Gauge (Max) | 30 AWG |
| Wire Gauge (Min) | 30 AWG |
| Housing Color | Green |
| Plating | Brass |
| Tail Length | 3.5 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
| Connection Method | Screw |
| Wire Gauge Range | 30 AWG to 16 AWG |
Stock: 53
Distributors
pcbx
pcbxUnit Price$6.36355
Ext.Price$6.36355
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $6.36355 | $6.36355 |
| 10 | $4.51501 | $45.15010 |
| 25 | $3.99345 | $99.83625 |
| 50 | $3.67783 | $183.89150 |
| 100 | $3.42217 | $342.21700 |
| 300 | $3.11909 | $935.72700 |
| 500 | $3.01283 | $1506.41500 |
| 1000 | $2.89649 | $2896.49000 |
